JIALIANG MECHANICAL SEALS & SIGNS MANUFACTURING COMPANY

JL43

Technical index:

--Mostly Use: water, oil and other low corrosion liquids
--Pressure in the sealed chamber: <=1.2Mpa
--Temperature in the sealed chamber: <=-20℃~200℃
--Linear Velocity: <=12m/Sec

Product details:

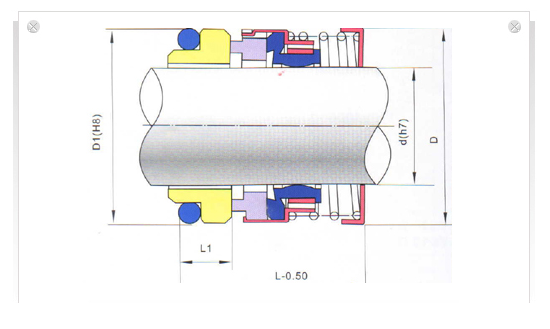

Size	Spec.	d	D	D1	L	L1
JL43-20		20	31.75	35	37.8	10
JL43-22		22	33.55	37	37.8	10
JL43-24		24	38.3	39	40.3	10
JL43-25		25	38.3	40	40.3	10
JL43-28		28	42.2	43	42.8	10
JL43-30		30	43.95	45	42.8	10
JL43-32		32	45.7	48	42.8	10
JL43-33		33	46.75	48	42.8	10
JL43-35		35	49.1	50	42.8	10
JL43-38		38	52.4	56	45.3	11
JL43-40		40	55.7	58	45.3	11
JL43-43		43	55.8	61	45.3	11
JL43-45		45	61.2	63	45.3	11
JL43-48		48	64.35	66	45.3	11
JL43-50		50	67.35	70	47.8	13
JL43-53		53	70.65	73	47.8	13
JL43-55		55	71.65	75	47.8	13
JL43-58		58	78.4	78	52.8	13
JL43-60		60	78.4	80	52.8	13
JL43-63		63	81.5	83	52.8	13
JL43-65		65	84.3	85	52.8	13
JL43-68		68	89.65	90	52.8	13
JL43-70		70	89.65	92	60.3	15.3
JL43-75		75	96.8	97	60.3	15.3
JL43-80		80	104	105	60.3	15.3
JL43-85		85	107.95	110	60.3	15.7
JL43-90		90	111.1	115	65.3	15.7
JL43-95		95	119	120	65.3	15.7
JL43-100		100	124	125	65.3	15.7
