JL103

Technical index:
--Unbalanced --Single seal
--Dependent on direction of rotation
--Temperature of medium:-20℃~+200℃
--Pressure of medium:0~0.8MPα
--Line speed:≤20m/sec

Product details:

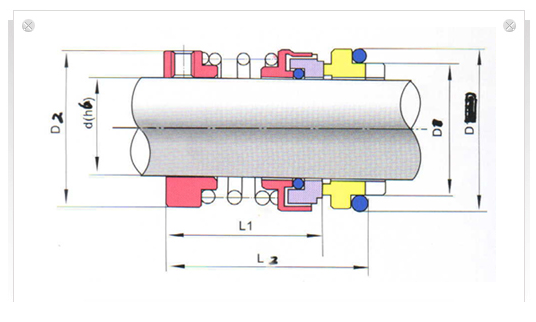

size information


size

Spec.

d

D

D1

D2

L1

L2

h6

H8

H11




JL103-16

16

33

25.5

33

40

52

JL103-18

18

36

28.5

35

44

56

JL103-20

20

40

30.5

37

44

58

JL103-22

22

42

32.5

39

48

62

JL103-25

25

45

35.5

42

48

62

JL103-28

28

48

38.5

45

50

64

JL103-30

30

50

40.5

52

56

70

JL103-35

35

55

45.5

57

60

74

JL103-40

40

60

50.5

62

64

78

JL103-45

45

65

55.5

67

71

85

JL103-50

50

70

60.5

72

75

89

JL103-55

55

75

65.5

77

77

91

JL103-60

60

80

70.5

82

77

91

JL103-65

65

90

80.5

92

89

106

JL103-70

70

97

85.5

97

91

110

JL103-75

75

102

90.5

102

91

110

JL103-80

80

107

95.5

107

98

117

JL103-85

85

112

100.5

112

100

119

JL103-90

90

117

105.5

117

101

120

JL103-95

95

122

110.5

122

101

120

JL103-100

100

127

115.5

127

101

120

JL103-110

110

142

130.5

141

126

147

JL103-120

120

152

140.5

151

126

147
