JIALIANG MECHANICAL SEALS & SIGNS MANUFACTURING COMPANY

JL108

Technical index:

--Major for centrifugal pumps, in-line pumps. General industrial pumps.
--Temperature in the sealed chamber:-20℃~110℃
--Pressure in the sealed chamber: <=0.8Mpa
--Linear Velocity: <=6m/Sec

Product details:

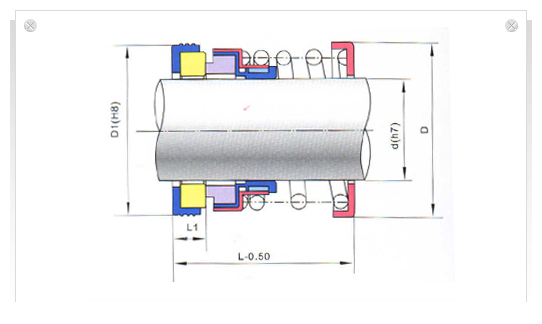

size information

Spec	size	d	D	D1	L	L1
JL108-9		9	20	21	20.3	5
JL108-10		10	20	21	20.3	5
JL108-11		11	22	24	20.3	5
JL108-12		12	22	26	20.3	5
JL108-14		14	24.5	26	25.3	5
JL108-15		15	26.5	27	25.3	5
JL108-16		16	26.5	27	25.3	5
JL108-17		17	32	33	25.3	5
JL108-18		18	32	33	25.3	5
JL108-19		19	34	35	25.3	5
JL108-20		20	34	35	25.3	5
JL108-22		22	36	37	28.3	6
JL108-25		25	39	40	32.3	7
JL108-28		28	42	43	35.3	7
JL108-30		30	44	45	35.3	7
JL108-35		35	49	50	37.3	8
JL108-40		40	56	60	40.3	9
JL108-45		45	61	65	40.3	9
