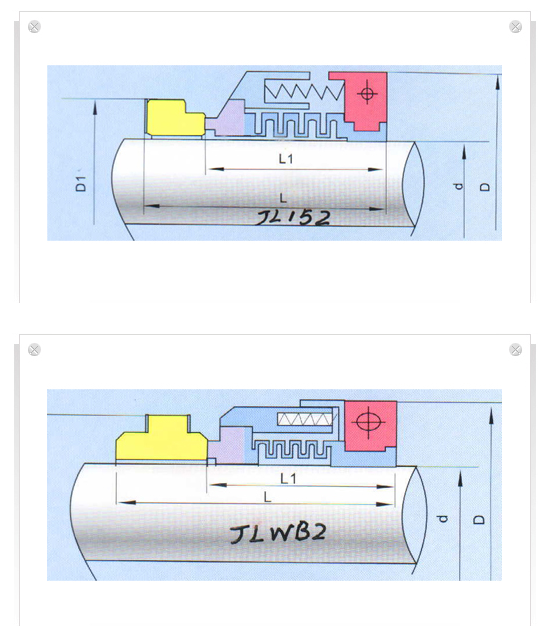

size information
Size | Spec. | d | D | D1 | L | L1 |
JL152-25 | 25 | 65 | 48 | 53 | 41 | |
JL152-30 | 30 | 67 | 53 | 53 | 41 | |
JL152-35 | 35 | 73 | 58 | 54 | 42 | |
JL152-40 | 40 | 78 | 63 | 54 | 42 | |
JL152-45 | 45 | 89 | 68 | 62.5 | 48 | |
JL152-50 | 50 | 94 | 73 | 62.5 | 48 | |
JL152-55 | 55 | 96 | 78 | 62.5 | 48 | |
JL152-60 | 60 | 101 | 87 | 66.5 | 52.5 | |
JL152-65 | 65 | 106 | 92 | 66.5 | 52.5 | |
Size | Spec | d | D | D1 | L | L1 |
JLWB2-30 | 30 | 67 | 65 | 68 | 41 | |
JLWB2-35 | 35 | 73 | 70 | 68 | 42 | |
JLWB2-40 | 40 | 78 | 76 | 68 | 42 | |
JLWB2-45 | 45 | 86 | 80 | 75 | 48 | |
JLWB2-50 | 50 | 91 | 85 | 75 | 48 | |
JLWB2-55 | 55 | 96 | 90 | 75 | 48 | |
JLWB2-60 | 60 | 101 | 95 | 66.5 | 52.5 | |
JLWB2-65 | 65 | 106 | 100 | 66.5 | 52.5 | |
