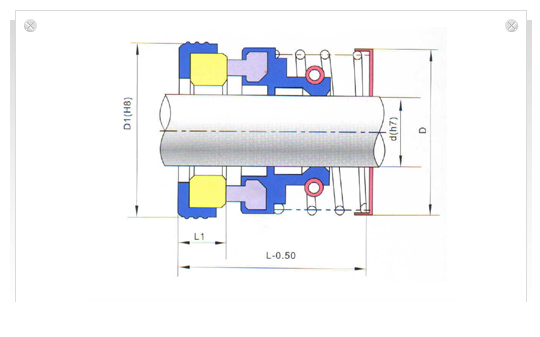

size information
spec. | size | d | D | D1 | L | L1 |
JL215-8 | 8 | 16 | 18 | 18.3 | 9 | |
JL215-9 | 9 | 19 | 21 | 23.3 | 9 | |
JL215-10 | 10 | 21 | 20 | 23.3 | 9 | |
JL215-11 | 11 | 21 | 24 | 23.3 | 9 | |
JL215-12 | 12 | 23 | 26 | 24.3 | 9 | |
JL215-13 | 13 | 23 | 26 | 24.3 | 9 | |
JL215-14 | 14 | 24.5 | 28 | 25.3 | 9 | |
JL215-15 | 15 | 24.5 | 28 | 25.3 | 9 | |
JL215-16 | 16 | 28.5 | 32 | 27.3 | 10 | |
JL215-17 | 17 | 28.5 | 32 | 27.3 | 10 | |
JL215-18 | 18 | 31.5 | 35 | 29.3 | 10 | |
JL215-19 | 19 | 31.5 | 35 | 29.3 | 10 | |
JL215-20 | 20 | 33.5 | 38 | 31.3 | 10 | |
JL215-22 | 22 | 34.5 | 40 | 32.3 | 10 | |
JL215-25 | 25 | 37.5 | 44 | 33.3 | 11 | |
JL215-28 | 28 | 40.5 | 46 | 34.3 | 11 | |
JL215-30 | 30 | 44.5 | 50 | 35.3 | 11 | |
JL215-32 | 32 | 47.5 | 54 | 37.3 | 11 | |
JL215-35 | 35 | 50.5 | 58 | 40.3 | 12 | |
JL215-38 | 38 | 53.5 | 60 | 42.3 | 12 | |
JL215-40 | 40 | 56.5 | 64 | 43.3 | 12 | |
JL215-45 | 45 | 61.5 | 66 | 45.3 | 12 | |
JL215-50 | 50 | 66.5 | 72 | 47.3 | 12 | |
