size information

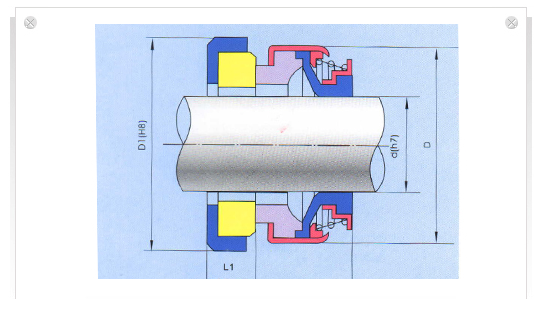

Size | Spec. | d | D | D1 | L | L1 |
JL301-15 | 15 | 32 | 29.5 | 21.3 | 8 | |
JL301-18 | 18 | 39 | 42 | 21.3 | 8 | |
JL301-20 | 20 | 39 | 42 | 21.3 | 8 | |
JL301-22 | 22 | 42 | 45 | 23.3 | 10 | |
JL301-24 | 24 | 47 | 50 | 24.3 | 10 | |
JL301-25 | 25 | 47 | 50 | 24.3 | 10 | |
JL301-28 | 28 | 54 | 57 | 25.3 | 10 | |
JL301-30 | 30 | 54 | 57 | 25.3 | 10 | |
JL301-32 | 32 | 54 | 57 | 25.3 | 10 | |
JL301-35 | 35 | 60 | 63 | 26.3 | 10 | |
JL301-38 | 38 | 65 | 68 | 30.3 | 12 | |
JL301-40 | 40 | 65 | 68 | 30.3 | 12 | |
JL301-45 | 45 | 70 | 73 | 32.3 | 12 | |
JL301-50 | 50 | 85 | 88 | 38.3 | 15 | |
JL301-55 | 55 | 85 | 88 | 45.3 | 15 | |
JL301-60 | 60 | 105 | 110 | 45.3 | 15 | |
JL301-65 | 65 | 105 | 110 | 45.3 | 15 | |
JL301-70 | 70 | 105 | 110 | 47.3 | 15 | |
