JIALIANG MECHANICAL SEALS & SIGNS MANUFACTURING COMPANY

JL502

Technical index:

--Unbalanced --Single seal
--Independent on direction of rotation
--Elastomer bellows
--Temperature of medium:-20℃~+150℃
--Pressure of medium:0~1MPα
--Line speed:≤15m/sec

Product details:

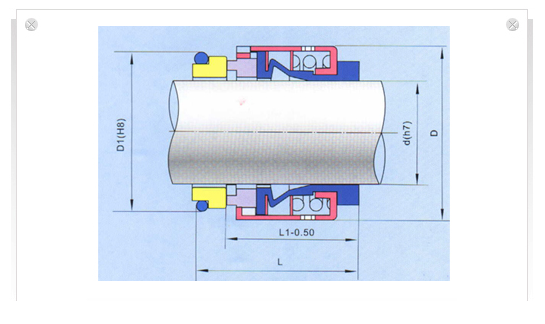

size information

Size	Spec.	d	D	D1	L	L1
JL502-14		14	24	25	34.75	23.3
JL502 -16		16	26	27	34.75	23.3
JL 502-18		18	32	33	37.3	24.3
JL 502-20		20	34	35	37.3	24.3
JL 502-22		22	36	37	37.3	24.3
JL 502-24		24	38	39	39.8	27
JL 502-25		25	39	40	39.8	27.3
JL 502-28		28	42	43	42.3	30.3
JL 502-30		30	44	45	42.4	30.8
JL 502-32		32	46	48	42.4	30.8
JL 502-33		33	47	48	42.4	30.8
JL 502-35		35	49	50	43.4	30.8
JL 502-38		38	54	56	44.9	32.3
JL 502-40		40	56	58	44.9	32.3
JL 502-43		43	59	61	44.9	32.3
JL 502-45		45	61	63	44.9	32.3
JL502-48		48	64	66	45.5	32.3
JL502-50		50	66	70	47.4	34.3
JL502-53		53	69	73	47.4	34.3
JL502-55		55	71	75	47.4	34.3
JL502-58		58	78	78	52.4	39.3
JL502-60		60	80	80	52.4	39.3
JL502-63		63	83	83	52.4	39.3
JL502-65		65	85	85	51.6	39.3
JL502-68		68	88	90	52.6	39.3
JL502 -70		70	89	92	60.2	45.3
JL502 -75		75	96	97	60.2	45.3
JL502 -80		80	104	105	60.2	45.3
JL502 -85		85	108	110	60.2	45.3
JL502 -90		90	114	115	65.2	50.3
JL502 -95		95	118	120	65.2	50.3
JL 502-100		100	124	125	65.2	50.3
