JLBIA

Technical index:

--Unbalanced --Single seal
--Independent on direction of rotation
--Elastomer bellows
--Temperature of medium:-20℃~+150℃
--Pressure of medium:0~0.6MPα
--Line speed:≤10m/sec

Product details:

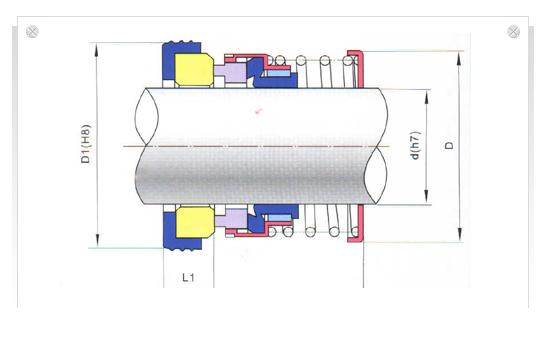

size information

Size	Spec.	d	D	D1	L	L1
JLBIA-14		14	26.5	30	24	5
JLBIA -16		16	28	32	26	5
JLBIA -18		18	29.5	35	30	7.5
JLBIA -20		20	31.6	35	29	8
JLBIA -25		25	40	40	33.5	8
JLBIA -28		28	42.5	43	33.5	8
JLBIA -30		30	45	45	34.5	9
JLBIA -32		32	47.5	48	42.5	9
JLBIA -33		33	47.5	48	42.5	9
JLBIA -35		35	50	50	42.5	9
JLBIA -38		38	54.5	56	42.5	9
JLBIA -40		40	57	58	42.5	9
JLBIA -43		43	60.5	61	46	9.5
JLBIA -45		45	63	63	47.5	9.5
JLBIA -48		48	64	66	47.5	9.5
JLBIA -50		50	67.8	70	47.5	9.5
JLBIA -53		53	71	73	50.5	9.5
JLBIA -55		55	74	75	50.5	9.5
JLBIA -58		58	80	78	51.5	9.5
JLBIA -60		60	82.5	80	51.5	9.5
JLBIA -65		65	85	85	52	10
JLBIA -70		70	92	92	56	11
JLBIA -80		80	105	104	67	12
JLBIA -85		85	110	109	76	12
JLBIA -90		90	115	111	78	12
