JLFBD

Technical index:

-- Mostly Use:average corrosion mediums,such as water,oil,weak acid,weak alkall,etc
-- Pressure in the sealed chamber: <=0.5Mpa
-- Temperature in the sealed chamber: -20℃~100℃
-- Linear velocity: <=16m/Sec

Product details:

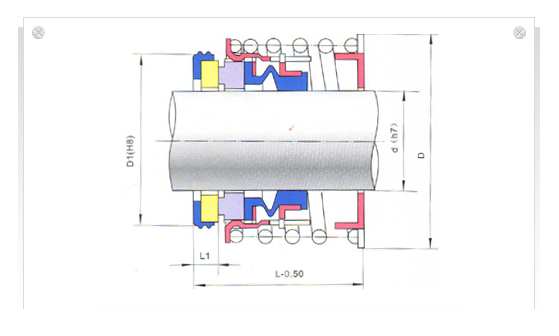

size information

Size	Spec.	d	D	D1	L	L1
JLFBD-16		16	34	30	33.3	8
JLFBD -18		18	36.8	32	33.3	8
JLFBD -20		20	38.8	34	33.3	8
JLFBD -22		22	41.5	36	33.3	8
JLFBD -25		25	44.8	39	34.3	8
JLFBD -28		28	48.5	43	34.3	8
JLFBD -30		30	52	48	34.3	8
JLFBD -35		35	57	53	40.3	10
JLFBD -40		40	67	58	44.3	10
JLFBD -45		45	73	63	46.3	10
JLFBD -50		50	79	68	51.3	10
JLFBD -55		55	84	73	53.3	12
JLFBD -60		60	90	79	53.3	12
JLFBD -65		65	98.5	86	61.3	12
JLFBD -70		70	103.5	91	64.3	12
JLFBD -75		75	110.5	96	64.3	12
JLFBD -80		80	120	105	70.3	14
JLFBD -85		85	125	110	70.3	14
JLFBD -90		90	132	115	70.3	14
JLFBD -95		95	137	120	70.3	14
JLFBD -100		100	144	125	76.3	14
JLFBD -110		110	157	135	78.3	16
JLFBD -120		120	169.5	145	88.3	16
